Different trucks

We provide a large number of trucks of various sizes on the road, both for domestic and international transport. Nevertheless, if you think there is something missing, or if you have questions, please contact us. We would love to hear from you!

We are using euro pallets (80cm x 120cm) when calculating capacity. Maximum loading weight in the Nordics is 30 tonnes, whilst 25 tonnes in the rest of Europe.



Distribution van, small approx. 800 kg 2 pallets

These small vans have a loading capacity of around 3m³, and are commonly used for express and small deliveries. Example: VW Caddy

Capacity (pallets) 2 pallets
Capacity (weight) approx. 800 kg
Capacity (load meter) Variable
Inner cabinet width ca 1,5 metres
Inner cabinet length Variable
Inner cabinet height ca 1,2 metres
Crane N/A
Roof rack N/A
Length Variable
Tail lift N/A
Exterior width Variable
Exterior height Variable

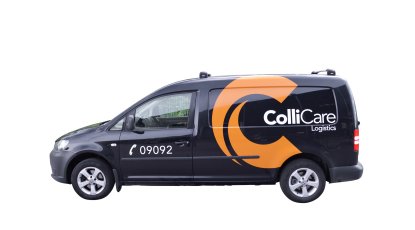

Distribution van, small
Stuffing Plan

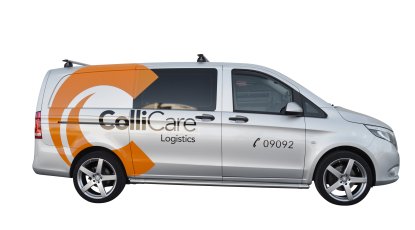

Distribution van, medium approx. 1400 kg 3 pallets

These medium sized vans have a loading capacity of around 5 - 11m³, depending on internal height. Example: MB Vito

Capacity (pallets) 3 pallets
Capacity (weight) approx. 1400 kg
Capacity (load meter) Variable
Inner cabinet width approx.1,8 metres
Inner cabinet length Variable
Inner cabinet height 1,3 - 1,8 metres
Crane N/A
Roof rack N/A
Length Variable
Tail lift N/A
Exterior width Variable
Exterior height Variable
equipment
equipment
Stuffing Plan

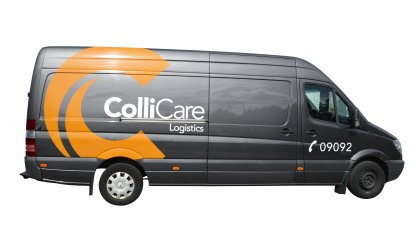

Distribution van, large approx. 1100 - 2000 kg 4 pallets

These large vans have a loading capacity of around 14m³, depending on internal height. Example: MB Sprinter

Capacity (pallets) 4 pallets
Capacity (weight) approx. 1100 - 2000 kg
Capacity (load meter) Variable
Inner cabinet width approx.1,8 metres
Inner cabinet length Variable
Inner cabinet height Variable
Crane N/A
Roof rack N/A
Length Variable
Tail lift N/A
Exterior width Variable
Exterior height Variable
equipment
equipment
Stuffing Plan

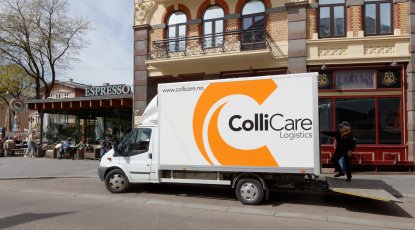

Distribution truck, small approx. 1 ton 8 pallets

Small trucks have a closed cargo unit with capacity for 8 pallets. Handy for smaller deliveries, but can also load heavier goods due to tail lift.

Capacity (pallets) 8 pallets
Capacity (weight) approx. 1 ton
Capacity (load meter) 4,5 metres
Inner cabinet width 2,2 metres
Inner cabinet length 6 metres
Inner cabinet height 2,0 metres
Crane N/A
Roof rack N/A
Length 6 metres
Tail lift 600 kg
Exterior width 2,4 metres
Exterior height 3,2 meter
distribution
distribution
road
road
Stuffing Plan

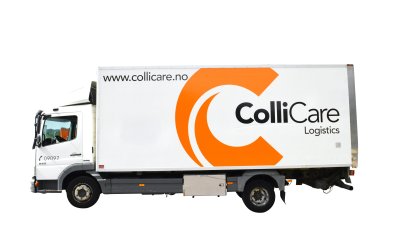

Distribution truck, medium approx. 2- 5 tonnes 12 - 15 pallets

Medium sized truck have a closed cargo unit with capacity for 15 pallets and up to 5 tonnes.

Capacity (pallets) 12 - 15 pallets
Capacity (weight) approx. 2- 5 tonnes
Capacity (load meter) 6 loading metres
Inner cabinet width 2,4 metres
Inner cabinet length 7,5 metres
Inner cabinet height 2,35 metres
Crane N/A
Roof rack N/A
Length 7,5 metres
Tail lift 1000 kg
Exterior width 2,5 metres
Exterior height 3,5 metres
Distrubution truck, medium
Stuffing Plan
Distribution truck, large approx. 8 - 10 tonnes 18 - 20 pallets

Large trucks have a closed cargo unit with capacity of up to 20 pallets and 10 tonnes.

Capacity (pallets) 18 - 20 pallets
Capacity (weight) approx. 8 - 10 tonnes
Capacity (load meter) 7,5 loading metres
Inner cabinet width 2,4 metres
Inner cabinet length 10 meter
Inner cabinet height 2,5 metres
Crane N/A
Roof rack N/A
Length 10 meter
Tail lift 1500 kg
Exterior width 2,5 metres
Exterior height 3,9 - 4,2 metres

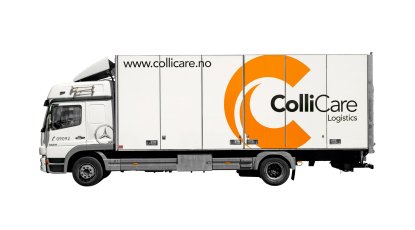

Distribution truck, large
Stuffing Plan

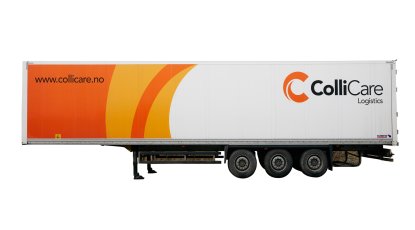

Box trailer approx. 30 tonnes in Nordic countries. 24,5 tonnes in the EU 33 pallets

Three-axle trailer with uninsulated enclosed cargo space. There are folding doors on one side, so one can load long cargo from the side. Internal fastening hooks in the floor and walls to secure goods. And lockable doors make it difficult for intruders to enter the freight unit.

Capacity (pallets) 33 pallets
Capacity (weight) approx. 30 tonnes in Nordic countries. 24,5 tonnes in the EU
Capacity (load meter) 13,6 loading metres
Inner cabinet width 2,5 metres
Inner cabinet length 15,5 metres
Inner cabinet height 2,5 metres
Crane N/A
Roof rack N/A
Length 15,5 metres
Tail lift N/A
Exterior width 2,5 metres
Exterior height 4 metres
Box trailer
Stuffing Plan

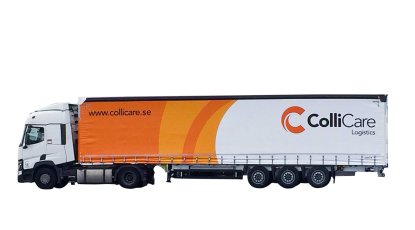

Curtainsider, tautliner approx. 30 tonnes in Nordic countries. 24,5 tonnes in the EU 34 pallets

Three-axle trailer with movable canopy and roof and rear doors. Loading from the rear, side and above. Hooks in floor for securing cargo

Capacity (pallets) 34 pallets
Capacity (weight) approx. 30 tonnes in Nordic countries. 24,5 tonnes in the EU
Capacity (load meter) 13,6 loading metres
Inner cabinet width 2,48 metres
Inner cabinet length
Inner cabinet height 2,7 metres
Crane
Roof rack
Length
Tail lift N/A
Exterior width
Exterior height
Curtainsider, tautliner
Stuffing Plan
Road train approx. 25 tonnes 38 pallets pallets

Truck with hanger

Capacity (pallets) 38 pallets pallets
Capacity (weight) approx. 25 tonnes
Capacity (load meter) 15,2 loading meters
Inner cabinet width 2,47 meters
Inner cabinet length 15,34 meters
Inner cabinet height 2,9 meters
Crane
Roof rack
Length 15,34 meters
Tail lift
Exterior width
Exterior height

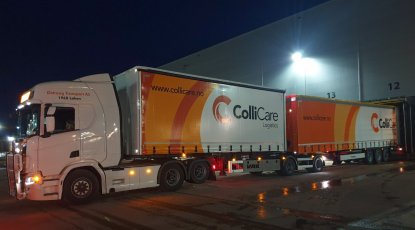

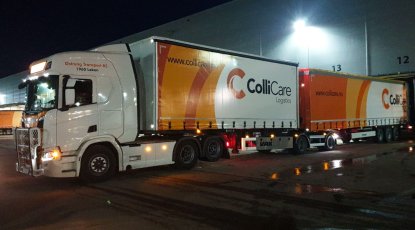

A branded ColliCare-trailer at night, parked at the terminal to unload goods.
Roan train

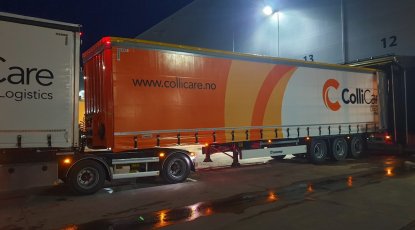

Road train loading by night
Stuffing Plan

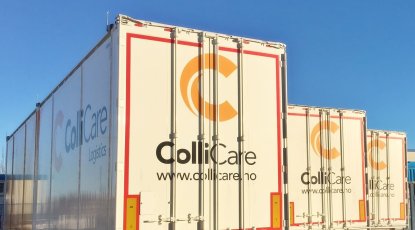

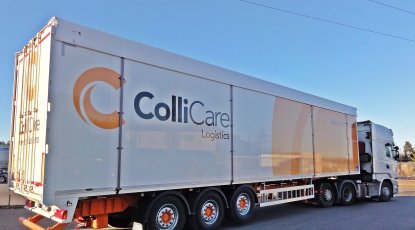

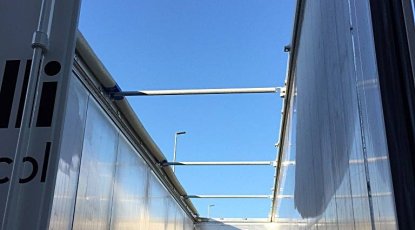

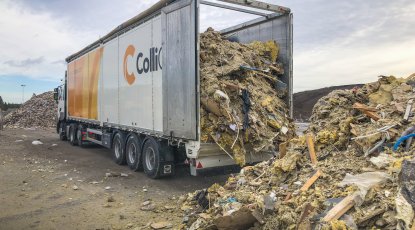

Walking floor trailer approx. 30 tonnes in Nordic countries. EU = N/A 33 pallets pallets

Three-axle trailer for loading of loose material, for example wood chips and industrial waste. Enclosed cargo space in aluminium profile, with fully welded interior. Folding doors on one side for loading of long cargo. Floor in 10mm grooved aluminium.

Capacity (pallets) 33 pallets pallets
Capacity (weight) approx. 30 tonnes in Nordic countries. EU = N/A
Capacity (load meter) 13,6 loading metres
Inner cabinet width 2,4 metres
Inner cabinet length
Inner cabinet height 3 metres
Crane
Roof rack
Length
Tail lift
Exterior width
Exterior height
Walking Floor
Walking Floor
Walking Floor
Walking Floor
Walking Floor
Walking Floor
IMG_2481
Stuffing Plan
Container approx. 12,5 tonnes 18 pallets

20 Feet container = 1 TEU.

Capacity (pallets) 18 pallets
Capacity (weight) approx. 12,5 tonnes
Capacity (load meter) 7,6 loading metres
Inner cabinet width 2,4 metres
Inner cabinet length 7,8 meter
Inner cabinet height 2,6 metres
Crane
Roof rack
Length 7,8 meter
Tail lift
Exterior width 2,5 metres
Exterior height 4 metres
Container 40 dc
Stuffing Plan

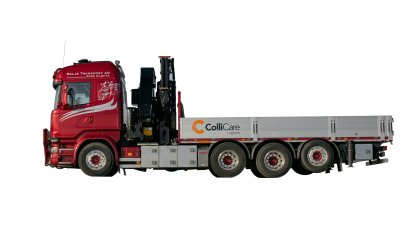

Crane/heavy haulage approx. 6 -10 tonnes 15 - 18 pallets pallets

We can offer cranes of various sizes and capacity.

Capacity (pallets) 15 - 18 pallets pallets
Capacity (weight) approx. 6 -10 tonnes
Capacity (load meter) 6 - 7,5 loading metres
Inner cabinet width 2,4 metres
Inner cabinet length 10 - 11,4 metres
Inner cabinet height
Crane 16 - 52 tonnes/metres
Roof rack
Length 10 - 11,4 metres
Tail lift 1.500 kg
Exterior width 2,5 metres
Exterior height 3,6 - 3,8 metres
Crane / heavy haulage
Stuffing Plan
Container SDOPS approx. 14 - 16 tonnes 19 pallets

Container 25/782 (305)SDOPS, for both train and truck, steel with side opening.

Capacity (pallets) 19 pallets
Capacity (weight) approx. 14 - 16 tonnes
Capacity (load meter) 7,6 loading metres
Inner cabinet width 2,475 metres
Inner cabinet length
Inner cabinet height 2,8 metres
Crane
Roof rack
Length
Tail lift
Exterior width 2,55 metres
Exterior height 3,05 metres

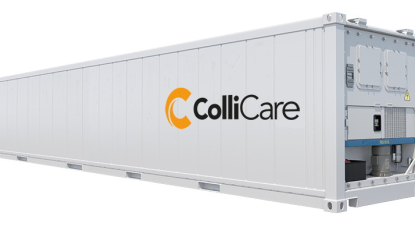

ColliCare container SDOPS
Stuffing Plan
